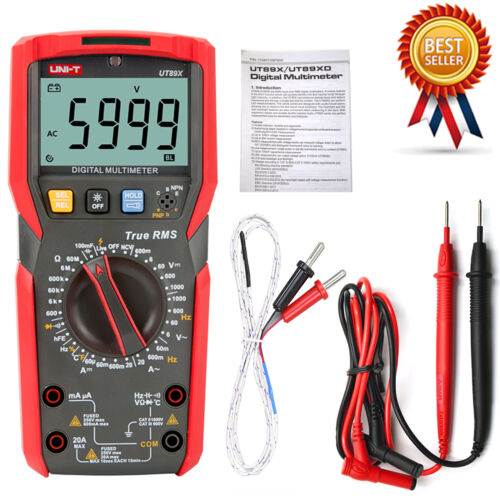

UT89X Digital Multimeter
UT89X/UT89XD is a reliable hand-held 35/ 6bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.
- 1000V AC/DC； 20A AC/DC
- True RMS, 6000 count
- Dual range NCV test which quickly identifies neutral and live wires through light intensity
- LED measurement
- Audible/visual alarm
- Capacitor charging indicator
- Ergonomic design
- Double injection molding
- 1m drop proof
- Flashlight; Auto backlight
| Specifications | Range | UT89XD |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) |
| DC current (A) | 60μA/6mA/60mA/600mA/20A | ±(0.8%+8) |
| AC current (A) | 60mA/600mA/20A | ±(1%+12) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/ 600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
| Capacitance (F) | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF | ±(2.5%+20) |
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| Features | ||
| Display count | 6000 | |
| Sampling rate | 3 times/s | |
| True RMS | √ | |
| AC voltage frequency response | 45~1000Hz | |
| AC current frequency response | 45~1000Hz | |
| LED test | √ | |
| Audible/visual alarm | V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD) | |
| Diode/Continuity test | √ | |
| Transistor hFE | √ | |
| Dual range NCV test | √ | |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| Function selection | SELECT | √ |
| Flashlight | √ | |
| Auto backlight | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Display | 61mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 345g | |
| Product size | 189mm x 89mm x 53mm | |
| Standard accessories | Batteries, test lead, k-type temperature probe (UT89X) | |
