UT70B UNI-T – Digital Multimeter

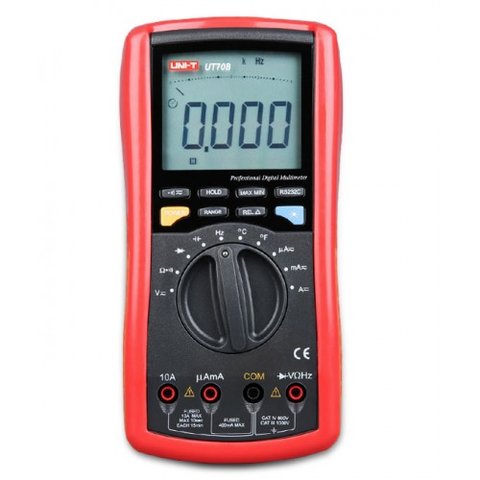

Multimeter UNI-T UT 70B

Portable digital multimeter UNI-T UT70B with advanced design. Photoelectric separation guarentees absolutely secure galvanic isolation of multimeter from PC.

SPECIFICATIONS:
DC Voltage: 400mV / 4V / 40V / 400V / 1000V
– best accuracy: +/- (0.8%+1)
AC Voltage: 4V / 40V / 400V / 750V
– best accuracy: +/- (1%+5)
DC Current: 400A / 4000uA / 40mA / 400mA / 10A
– best accuracy: +/- (1%+2)
AC Current: 400µA / 4000µA / 40mA / 400mA / 10A
– best accuracy: +/- (1.5%+5)
Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm
– best accuracy: +/- (1%+2)
Capacitance: 4nF / 40nF / 400nF / 4uF / 40uF / 400uF / 4mF / 40mF
– best accuracy: +/- (4%+3)
Frequency: 4kHz / 40kHz / 400kHz / 4MHz / 40MHz / 400MHz
– best accuracy: +/- (0.1%+3)
Temperature: from -40 to +1000°C, from -40 to +1832°F
– best accuracy: +/- 1%+3 (°C), +/-1%+4 (°F)
RPM: 40kRPM
– best accuracy: +/- (0.1%+3)

SPECIAL FUNCTIONS:
Fuse 10A range
Auto ranging
Diode
Continuity buzzer
Data Hold
Full icon display
Sleep mode
Low battery display
Max/Min mode
Relative mode
RS232C
Input impedance for DC Voltage: 10Mohm
Display backlight
Max. display 3999 (62 x 53mm)
Analogue bar graph

GENERAL CHARACTERISTICS:
Product size: 195 x 90 x 40mm
Product weight: 560g
