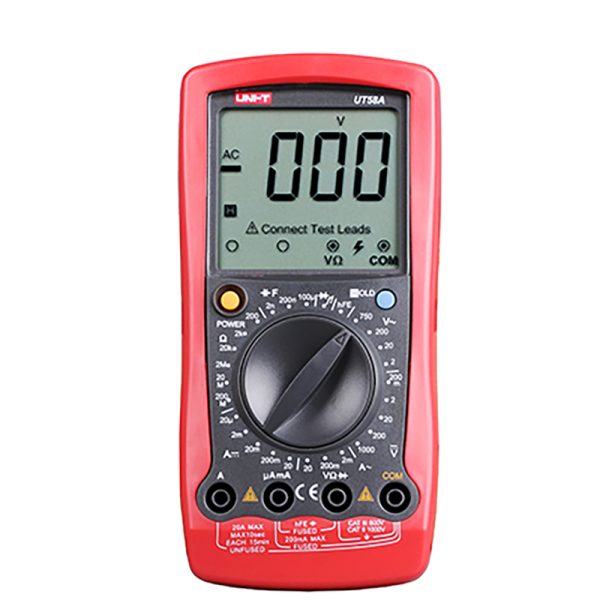

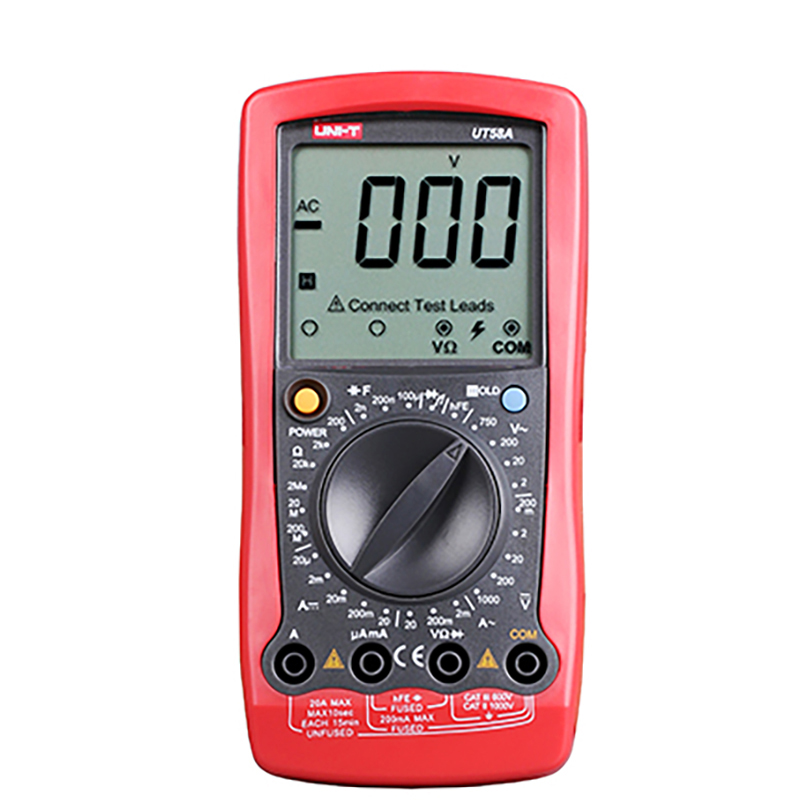

UT58A UNI-T
Features
1. 2000 display count, refresh rate 2~3 times/s
2. Function symbols and test lead connection indication
3. Transistor measurement
4. Diode and continuity buzzer; auto power off； overload protection
5. Data hold; 20A AC/DC current measurement
Tech. Spec
| Specifications | Range | UT58A |
| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| DC current (A) | 20μA/2mA/20mA/200mA/20A | ±(0.8%+1) |
| AC current (A) | 2mA/200mA/20A | ±(1%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/200nF/100μF | ±(4%+3) |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 60mm x 54mm | |
| Product color | Red and grey | |
| Product net weight | 350g | |
| Product size | 179mm x 88mm x 39mm | |
| Standard accessories | Battery, test leads, holster, multi-purpose socket, point contact temperature probe | |
| Standard individual packing | Gift box, English manual | |
