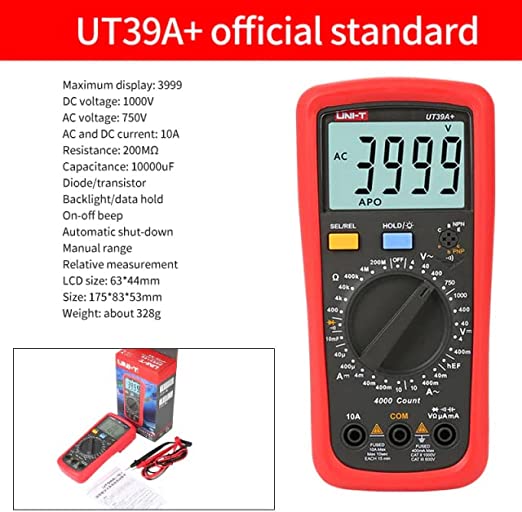

UT39A+ UNI-T
Features
1. 1000V DC voltage measurement
2. 750V AC voltage measurement
3. 10A DC/AC current measurement
4. Resistance/Capacitance
5. hFE
6. Diode/Continuity test
Tech. Spec
| Specifications | Range | UT39A+ |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
| AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) |
| DC current (A) | 40uA/400uA/4mA/40mA/400mA/10A | ±(0.8%+3) |
| AC current (A) | 40mA/400mA/10A | ±(1%+2) |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | ±(0.8%+2) |
| Capacitance (F) | 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF | ±(4%+5) |
| Features | ||
| Display count | 4000 | |
| Transistor hFE | √ | |
| Diode | √ | |
| Frequency response | 40Hz~400Hz | √ |
| Range selection | Manual | |
| Continuity test | √ | |
| Data hold | √ | |
| Backlight | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03)×2 | |
| Display | 56.5mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard accessories | Test leads | |
| Standard individual packing | Gift box, English manual | |
