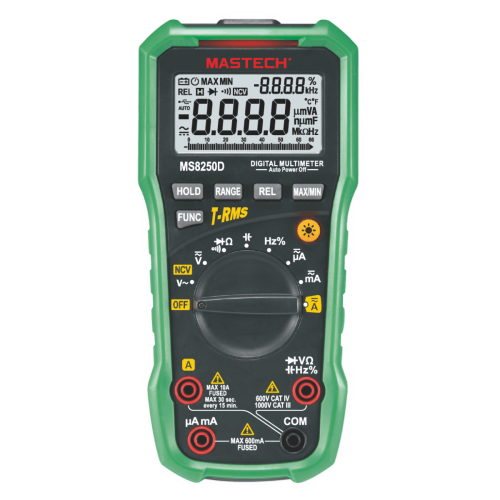

The MS8250D is a portable, hand-held yet professional meter that feature True RMS measurement display, AC/DC current, AC/DC voltage, Frequency, Capacitance, Resistance, Continuity, Duty Ratio, Diode Testing and a USB adapter for recording readings on a PC.
- Auto range and manual range.
- Full range overload protection
- Max. voltage between terminal and ground:
- CAT IV, 600V DC or AC rms.
- CAT III, 1000V DC or AC rms.
- Operational altitude: 2000 m max.
- Display: LCD
- Displayed maximum value: 6599
- Polarity Indication: Automatically display ” – “
- Over range indication: “OL ” or “-OL”
- Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for
- current measurement: approx. 1s/bar graph: 0.1s
- Unit display: functions and unit power
- Auto power off time: approx.15 min.
- Power Supply: 9V Battery
- Low Battery Indication: displays shows’
- Temperature coefficient: less than 0.1 x accuracy/℃
- Operating temperature: 0℃ to 40℃
- Storage temperature: -10℃ to 50℃
- Dimension: 180x86x52mm
- Weight: about 250g (without battery)
Features:
- Display: 6600 counts
- Auto Ranging
- Manual Ranging
- Auto Power Off
- Relative Measurement
- True Root Mean Square
- Non-Contact Voltage Detection
- Diode: 3.2V
- Continuity Buzzer: <50Ω
- MAX/MIN
- Bar Graph
- Data hold
- Low Battery Display
- Display Backlight
- USB Interface: Windows OS
