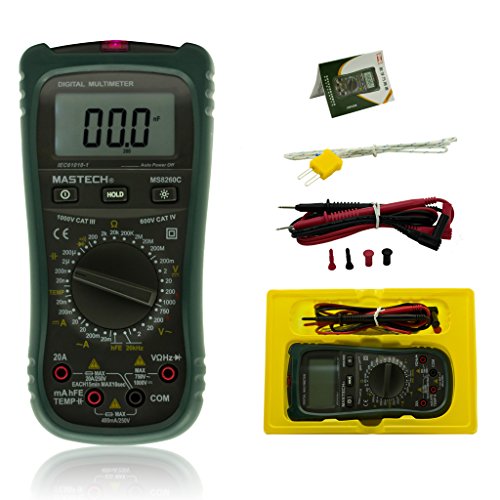

Mastech MS8260C Digital Multimeter With Non-Contact Voltage Detector

MS8260C Mastech

Description:

The MASTECH MS8260C is a fully featured digital multimeter with all the functions you may need for your daily usage. Its 30-range rotary switch covers 11 different functions including AC/DC voltage and current, resistance, capacitance, frequency, diode check, continuity test, temperature and transistor check. This meter also has a built-in non-contact sensor for detecting AC voltage greater than 110 volts.

Specifications:

• DCV:0 – 200mV – 2V – 20V – 200V 0.5% – 1000V 0.8%
• ACV:0 – 2V – 20V – 200V 0.8% – 750V 1.2%
• DCA:0 – 20mA 0.8% – 200mA 1.5% – 10A 2.0%
• ACA:0 – 20mA 1.0% – 200mA 1.8% – 10A 3.0%
• R:0 – 200 – 2k – 20k – 200k – 2M 0.8%, 0 – 20M ohm 1.0% – 200M ohm 5.0%
• CAP:0 – 20nF – 200nF – 2uF 4.0% 0 – 200 uF 5.0%;
• Temp: -20C – 0C 5.0%, 1C – 400 C 2.0%, 401 C – 1,000C 2.0%
• Frequency: 0 – 20KHz 1.5%
• Audible continuity: < 30 ohm;
• hFE: 0 – 1,000
• Diode test: 1 mA , 2.8V;
• Battery: 9Vx1, NEDA 1604/6F22 (NOT INCLUDED)

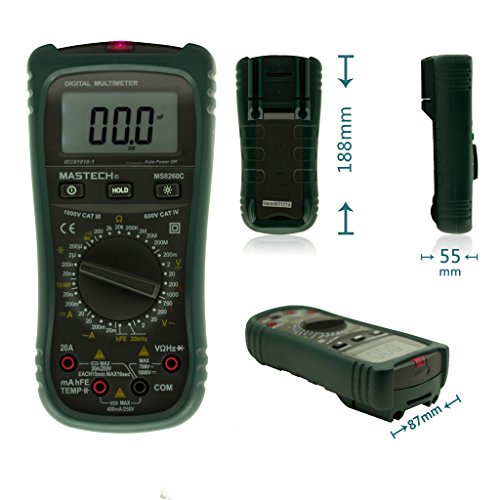

• Size: 1889250MM (7 1/2″ X 3 1/2″ X 2″);
• Weight: 380g

Key Features:

• Built-in non-contact AC voltage sensor with flash warning (> 110V AC)
• Auto power off
• Data hold
• Back-lit 3 1/2 digit LCD display
• Low battery indication
• Polarity indication
