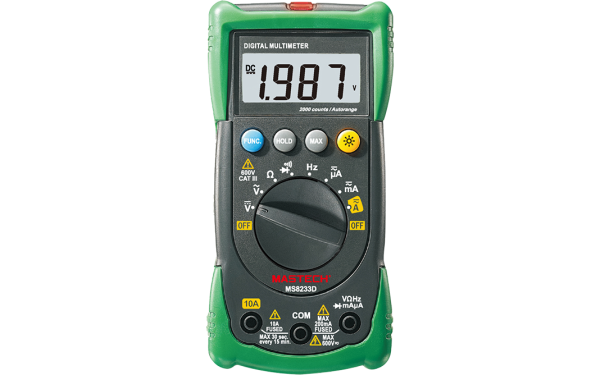

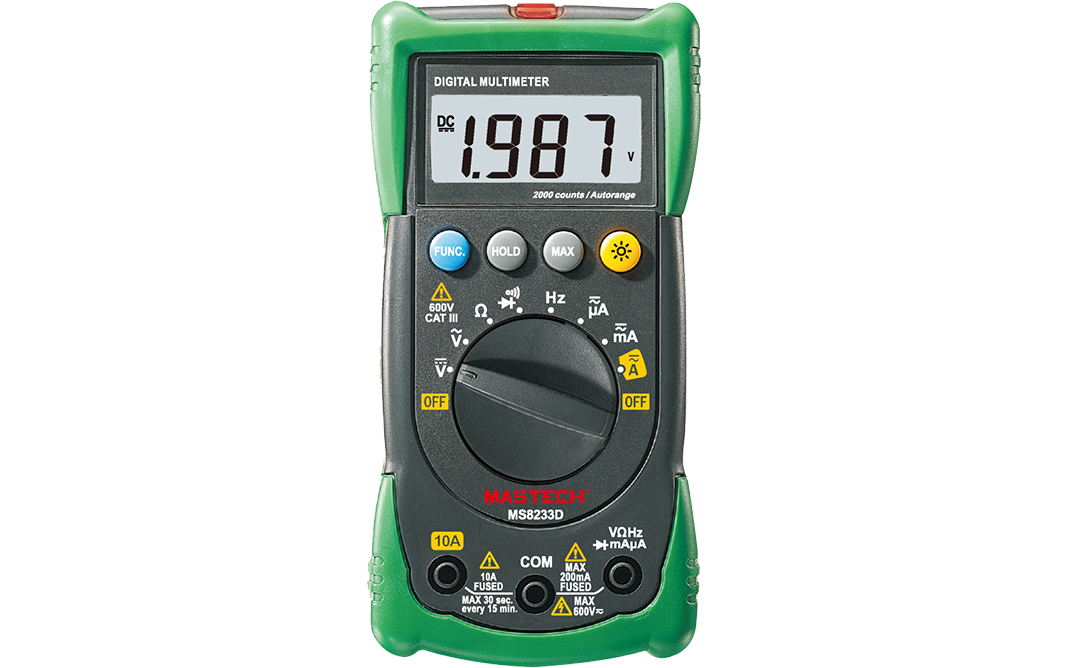

MASTECH MS8233D Digital Multimeter

In stock

Product Enquiry

MS8233D Mastech

Overview:

  • Auto ranging DMM, that full scale is 2000 counts
  • Display: 3 ½  digit LCD display.
  • Over load protection: Used the PTC protection frequency measurement for (MS8233D)
  • AC electric field detection function (NCV funtion)
  • DATA HOLD function
  • MAX value hold function
  • Back Light
  • Low battery indication
  • Auto Power-OFF.: If the meter is idle for 15 minutes(idle time), the meter automatically turns the power off. After auto power-off , pushing any of the push button or changing the rotary switch can turn on the meter again.
  • NOTE:
  • (1) After auto power off in the AC mode, if changing the rotary switch to the DC mode,the Re-power on if disabled.
  • (2) The meter enters sleep mode after quto power off. If press “HOLD” push button to re-power on in the sleep mode, the auto power off function is disabled.
  • Operating environment: 0~40℃ (32~104℉) & <80%RH
  • Storage temperature: -10℃ to 50℃ (14~122℉) & <70%RH
  • Power supply: 9V Battery (6F22 or 1604A Type) x 1 pcs.
  • Safety class: IEC 61010-1,CAT II 600V
  • Dimension(LxWxH): 140 x 67 x 30 mm.
  • Product weight: Approx. 112g

Features:

  • Display: 2000 counts
  • Autoranging
  • Auto Power Off
  • Non-contact Voltage Detection
  • Diode: 1.48V
  • Continuity Buzzer: <100Ω
  • Data hold
  • Maximum Measurement
  • Display Backlight
  • Low Battery Display



Specification Range Accuracy

DC Voltage 200mV/2V/20V/200V +-(0.5%+2)
600V +-(0.8%+2)
AC Voltage 2V/20V/200V +-(0.9%+3)
600V +-(1.2%+3)
DC Current 200µA/2mA/20mA/200mA +-(1.5%+3)
10A +-(1.5%+3)
AC Current 200µA/2mA/20mA/200mA +-(1.5%+3)
10A +-(1.5%+4)
Resistance 200Ω/2KΩ/20KΩ/200KΩ +-(0.8%+2)
2MΩ/20MΩ +-(1.0%+2)
Frequency 0~20kHz +-(1.5%+5)
