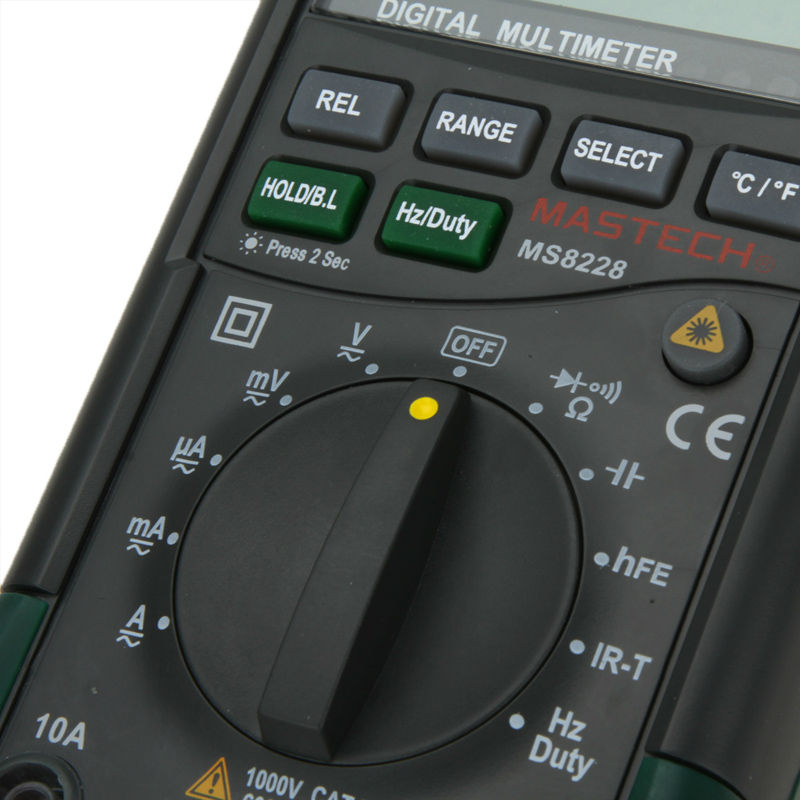

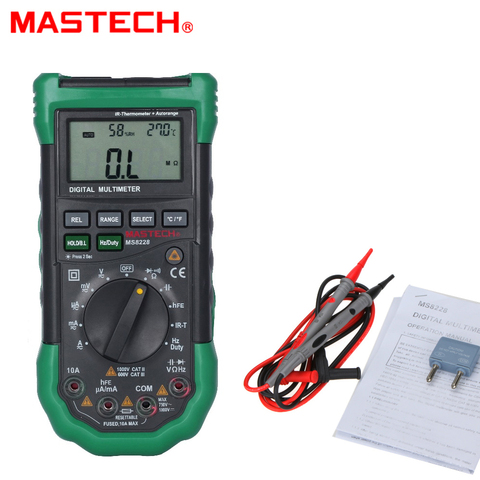

Mastech MS8228 Auto range Digital Multimeter

In stock

Product Enquiry
Category:

MS8228 Mastech

  • The meter is devised with light and sound alarm to prevent test leads misconnection.
  • Auto range and manual range options are available.
  • Overrange protection is provide for all ranges.
  • Maximum voltage between terminals and earth ground: 1000V DC or rms AC
  • Operating altitude: max. 2000 meters (7000 ft.)
  • Display: LCD, 3 readings at the same time
  • Maximum value display: 3999 digits
  • Polarity indication: automatic; ‘-‘ for negative polarity.
  • Overrange indication: ‘0L’ or ‘-0L’
  • Sampling time: approx. 0.4 second per sample
  • Unit indication: function and unit.
  • Auto power off time: 30 min.
  • Specification of resettable fuse: F1 500mA/250V
  • Fuse protection: F2 10A/250V (quick acting)
  • Operating power: 1.5V * 3 AAA batteries
  • Battery low indication:  on LCD
  • Temperature factor: <0.1*Accuracy℃
  • Operating temperature: 0℃ to 40℃ (32℉ to 104℉)
  • Storage temperature: -10℃ to 50℃ (10℉ to 122℉)
  • Dimension: 195*92*55 mm
  • Weight: approximate 400g (including batteries)
  • Certificate: CE CAT II 1000V/ CATIII 600V  RoHS
  • Display: 4000 counts
  • Autoranging
  • Auto Power off
  • Sound & Light: For incorrectly insterting the input plugs
  • Laser Pointer: Targenting the Measurement Point
  • ℃/℉ Selection
  • hFE: 1~1000ß for transistor under test
  • Emissivity
  • Relative Measurement
  • Infrared Tempture
  • Diode: 1.5V
  • Continuity Buzzer: <40Ω
  • Data Hold
  • Low Battery Display
  • Display Backlight
Specification Range Accuracy

DC Voltage 40mV/400mV/4V/40V/400V/1000V +-(0.7%+2)
AC Voltage 40mV/400mV/4V/40V/400V +-(0.8%+3)
750V +-(1.0%+3)
DC Current 400µA/4000µA/40mA/400mA +-(1.2%+3)
4A/10A +-(2.0%+10)
AC Current 400µA/4000µA/40mA/400mA +-(1.5%+5)
4A/10A +-(3.0%+10)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ +-(1.2%+2)
40MΩ +-(2.0%+5)
Capacitance 40nF/400nF/4µF/40µF/100µF +-(3.0%+3)
Frequency 9.999Hz +-(2.0%+5)
99.99Hz/999.9Hz/9.999kHz +-(1.5%+5)
99.99kHz/199.99kHz +-(2.0%+5)
Duty Cycle 0.1%~99.9% +-(3.0%)
Infrared Thermometer(℃/℉) -20℃~270℃ +-(2.0%+3)
270℃~300℃ +-(4.0%)
-4℉~572℉ +-(2.0%+6)
Environment(℃/℉) 0℃~40℃ +-2.0℃
32℉~104℉ +-4.0℉
Relative Humidity 20%~95% +-5.0%RH
